The CKX microscopes utilize the infinity-corrected optical system for improved visibility and operability in cell checking. The CKX31 is a cost-effective inverted microscope suited to routine applications in a range of fields--from tissue culture and embryology to immunology and pharmacology. Olympus has taken this one step further with the CKX41 developing a modular design approach with the capability of a fluorescence illuminator for GFP; documentation of images with digital imaging and video monitoring. The CKX41 is routinely used for checking cell viability in petri dishes, culture flasks, and multi-well plates.










  Features & Benefits
Accessories
Optics
Peripherals

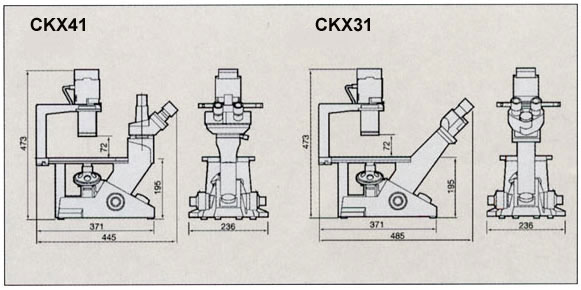

Dimensions
Specifications
Brochures

  • CKX31 & CKX41 are designed using the (UIS) infinity-corrected optical system

  • A robust, small footprint frame with triangular base and solid front-to-back support provides exceptional stability and allows the user more room on tabletop

  • Improved optical performance for Phase Contrast and new Relief Contrast

  • A pre-centered slider saves time in configuration of the phase annulus

  • Unique tilting observation tube offers ergonomic positioning for sitting and standing observation (optional on the CKX41 only)

  • Powerful 6V/30W halogen bulb provides significantly enhanced image quality and brightness for observation of cells

  • Glass stage insert provides quick recognition of objective lenses (optional on CKX41 only)

  • Features a fluorescence illuminator; a dual slider for blue and green excitation cubes, and offers a cost effective 50w mercury system (optional on the CKX41 only)

  • Centering-free, common phase annulus for 10x, 20x, and 40x; needs no adjustment (standard with the CKX31)

CKX41 accessories:


A various line of (UIS) infinity-corrected objectives for brightfield and Phase Contrast are available.



CKX31 & CKX41 Specifications
Item CKX41
Optical system UIS (Universal Infinity-corrected) optical system
Focus Vertical nosepiece movement (stage is fixed),
coaxial coarse and fine focus with tension adjustment mechanism,
roller slide mechanism,
stroke: 7mm up and 2mm down from focus position which is 1mm above the stage,
stroke per rotation: 39.6mm (coarse), 0.2mm (fine)
Revolving nosepiece Quadruple
Stage Plain stage 160mm(L) x 250mm(W), stage clips attachable
  Exchangeable insert plate (?5mm opening) incorporated
Mechanicalstage Right-hand low drive coaxial controls,
stage movement: X=120mm, Y=78mm, with three dish/sample holders
Substage 70(L) x 180(W) mm
Illumination system Light source 6V/30W halogen lamp, lamp socket (U-LS30-3-2),
built-in frosted and heat absorbing filters, detachable illuminator
Filter holder Insert up to 11mm thick with ?5mm filter, detachable
Aperture diaphragm Lever type, range: from minimum ?mm to maximum ?4mm
Slider insertion With phase slider pocket and built-in slider position click stop mechanism
Condenser Detachable ultra-long working distance condenser (N.A. 0.3, W.D. 72mm)
Contrast slider Pre-centered Phase Contrast: 4x, 10x/20x/40x, empty slot Centerable Phase Contrast: 4x, 10x/20x, empty slot (40x optional, pre-centered)
Observation tube
Trinocular tube(U-CTR30-2) Inclined 30? ring dovetail attachment, interpupillary distance range: 48-75mm, tube length and diopter adjustment by helicoid on left sleeve. Observation optical path: 50 (binocular) / 50 (video port)
Vertical fluorescence illuminator Detachable illuminator, switchable slide (2 position: B excitation, G excitation, transmitter light observations. Two cubes attachable simultaneously), built-in UV absorbing filter
Eyepiece WHB10X/WHB10X-H (F.N. 20) for U-CBI30 and U-CTR30WHB10X/WH10X-H/35WH10X/PWH10X (F.N. 22) for U-TBI-3
Power supply Continuous intensity adjustment, built-in voltage changeover switch (100/120V, 220/240V), frequency 50/60Hz
